This way to the party: How to make a map to include on invitations
Guide your guests with a customized, annotated map you can easily email or drop into an event invitation.
By Lesa Snider, MacworldJUN 5, 2015 2:36 am PDT
Summer is upon us, with plenty of events to plan and maps to make. Providing a quality map with an invitation helps your guests, and your Mac makes them easy to create. Using just three apps—Contacts, Maps and Preview—you can produce a custom map to print or pop into an email. Fire up the grill, because your map is just a few creative clicks away.
Start with Contacts
If your event location is already in your Contacts app (say, a home or a business), find it by typing part of its name into the Contacts app search field. If it isn’t there, go ahead and add it.
Click the label next to the address (it typically says home or work) and a shortcut menu appears. Choose Open in Maps, and the Maps app launches and pinpoints the address.
Massaging the map
In the map that appears, your chosen address is clearly marked by a pin and a flag. The flag also displays travel time to the destination, but we’ll cover that up using some Preview magic explained later.
First, use the + and – buttons at the bottom-right to find a useful zoom level. Frame it so that major crossroads give your guests a point of reference. To make the street names larger choose View > Labels > Use Large Labels. If the location flag disappears, click the pin to show it again. And if the Directions pane appears, close it by choosing View > Hide Directions (Command-R).
Capture for Preview
To capture a picture of the Maps window, press and hold Shift-Command-4 then tap the Spacebar. The cursor changes to a camera, and when you mouse over the Maps window it highlights in blue.
Annotate in Preview
Find the screen shot file on your desktop—it’s named “Screen Shot” followed by the date and time you captured it. Rename it something more useful, like “Map to Apple Store.”

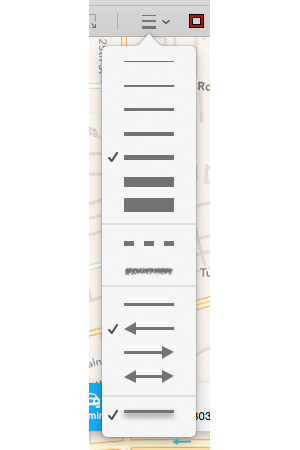

Double-click that file to open it in Preview, or drag it onto the Preview app in your dock or in your Applications folder. In Preview, get the Arrow tool by choosing Tools > Annotate > Arrow (Control-Command-A). Then, from the Markup toolbar, click the Shape Style menu and pick a thick line. If the Markup toolbar isn’t showing, choose View> Show Markup Toolbar (Shift-Command-A).
Don’t worry about getting it exactly right. You can change the width, direction, style and color later by clicking on the arrow and making new choices from the Markup toolbar. For example, to change the color of the arrow, click the Border Color menu just to the right of the Shape Style menu on the Markup toolbar.
Get the Rectangle annotation tool by choosing Tools > Annotate > Rectangle (Control-Command-R) and drag over the tail of the arrow to make a box.

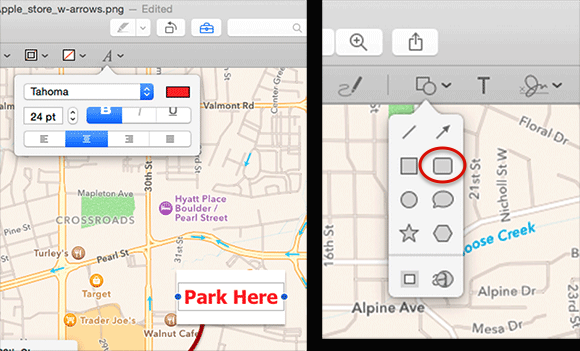

Get the Text annotation tool by choosing Tools > Annotate > Text (Control-Command-T). Drag the resulting text box on top of your rectangle and pull the blue dots to adjust its width. Type “Park Here” and click the Text Style menu (below left). Choose a big font such as 24 pt Tahoma Bold and click the color box to set its color. Use the same techniques to add another arrow and rectangle to label the Apple Store, but this time choose a rounded-corner rectangle from the Shapes menu (circled, below right).
Zoom out and you’ll see the Maps app toolbar is still attached to the top of the map. To remove it, get the rectangular selection tool by choosing Tools > Rectangular Selection and drag it across the area you want to keep. Then choose Tools > Crop (Command-K) to crop out the rest.
The hidden eyedropper tool

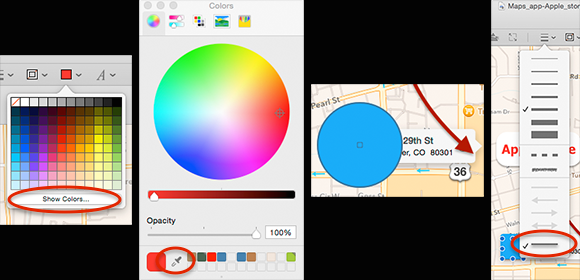

To cover the time-to-destination information in the location flag, choose Tools > Annotate > Rectangle and drag over the blue area. To match the rectangle’s color to the blue in the flag, click the Show Colors button in the Fill Color menu (circled below).
To sample a color from your document, click the eyedropper tool (circled) and a circular enlargement appears (third image). Mouse over the color you want and click to apply it. To remove the drop shadow from the rectangle, click the item at the bottom of the Shape Style menu to remove its checkmark (circled, right image)
Saving your map

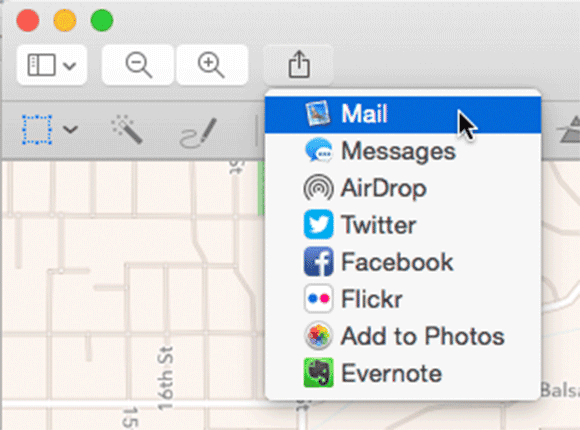

Choose File > Save to save your map in PNG format, which is perfect for printing, email or text messages. If you’re super eager to share it, click the Share button.
With a map like this, your guests are sure to find your event. Until next time, may the creative force be with you all!
