Napkin 1.5 review: Quick and detailed markup of screen captures and images

As a tech writer, I have a bias towards programs that make it easier for me to communicate graphically, especially when a step-by-step process is involved. Napkin 1.5 helps enormously by letting me take an image—whether a photo or screen capture—and quickly annotate it in a way that looks professional and can be edited later.

This is a niche product that, for the right person or company, will save inordinate amounts of time, and it requires only a few minutes to master. That compares favorably to using, say, Pages or Keynote and exporting the results in a fashion you can use. Napkin’s interface is intentionally limited and simplified. There are few tools and little elaboration. But simplicity is a benefit when the right choices are made.

The right kind of objectification

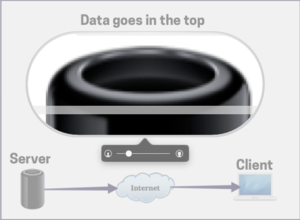

Napkin revolves primarily around images, which can be used directly and cropped. A very clever Call-Out tool lets you put a magnifying glass over an area of an image to enhance detail, including automatically adding portions the app recognizes as faces. (Facial recognition isn’t perfect by any means.) Images can be dragged in or imported, and there’s also Screenshot and Camera tools for creating new ones. To annotate, you can use text, shapes, or lines.

Lines have a fair amount of nicely tucked-away complexity. Once you place an endpoint over an image, shape, or text box, whenever you move that object, the endpoint moves with it. I do think the default arrow shape is a little horsey, as it offers only a single head style and tapers in an abrupt way from thick to thin.

You can swap among arrow, line, or red line. That last option constrains itself to vertical or horizontal when manually adjusted, and puts two perpendicular caps on either end—useful for marking dimensions or the extent of something on an image. With shapes, the default is a rectangle, but a clever reshaping handle—green, on the top—lets you move from rounded corners through to an ellipse. (You can start with a rounded-corner rectangle or circle by selecting those items from the Insert menu, too.)

A fascinating gem of a feature is matching sizes. Because you’re working imprecisely without measurements, you can wind up with different sized shapes and boxes and the like (unless you duplicate everything you create). Napkin lets you select multiple objects and then choose Arrange > Match Object Sizes, where you can select Smallest, Average, or Largest. The objects are then all resized within those bounds. (It doesn’t resize text, however, only the boxes that contain text.)

As an example of a useful purpose to which to put Napkin: our home-entertainment system is the same mess that all such systems are, and my wife asked me to document how different functions work. This is useful, because I often forget the precise sequence and need to re-teach myself.

I took pictures of the various remote controls, brought them into Napkin in separate documents, and then used callouts to zoom in on elements like the dedicated Netflix and Amazon buttons. I used arrows to connect the callout to the point on the original image—a feature that would be great to automate in a future version, since it’s an obvious connection. Then I used text to label the parts.

When you’re done working on an image, you can drag the “.png” icon in the upper right of the window to another app or onto the Desktop, and a PNG of just the active image area—defined by the outer edges of any objects—gets made and exported. You can also use Share to access sharing services, or File > Export to turn into a JPEG, JPEG-2000, OpenEXR, PDF, PNG, or TIFF, and choose the location.

Hidden (and redacted) depths

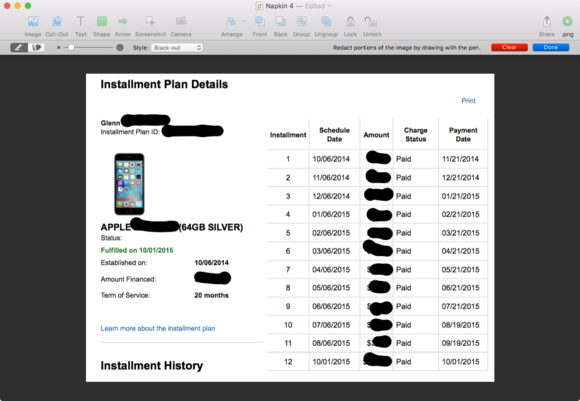

Despite its simplicity, there’s plenty of depth as you learn to use it. Because screen captures or other images often contain private information when you’re making something to share with others, you can use a built-in redaction tool. Hover over an image and click the gear icon to select it or simply double-click the image.

You can draw and erase over areas, with a slider controlling the detail level, and pick among Black-Out, Pixelate, and Blur. Redaction is a blending layer, rather than modifications to the image, letting you revise it later. It would be a nice addition if if you could drag rectangular areas over parts of the image, rather than redaction being solely through drawing. (Holding down Shift does constrain to straight horizontal and vertical.)

A slightly hidden option lets you redact all faces recognized in an image with a single selection: when viewing in an image in the regular layout mode, click the gear icon, and choose Redact Faces in Image.

Like more powerful drawing and layout programs, every element is placed in an invisible stack in relation to every other element, so you can use the typical send backward/send to back and bring forward/bring to front options, as well as arrange, distribute, and lock objects.

A few rough edges prevent Napkin from reaching perfection. The Call-Out tool has a minimum magnification size that’s way too large in many cases as it’s relative to an image’s full resolution, rather than how it’s resized in a Napkin document. It should be adjusted to be relative to proportion. Duplicating an object should be an Option-drag away, as in most drawing and layout program, but one must use Command-D (Edit > Duplicate), which produces a copy that’s offset, meaning it has to be moved if you want to have text or objects have common alignment.

Also in the interests of fewer features makes better work, you can’t set both the fill and outline (stroke) for a shape. I understand why the developers limited that, but it seems like a small thing to change to allow better variation in making boxes. You also can’t drag to select objects; instead, you must hold down the Shift key and draw around the perimeter of everything you want to include. These are all minor concerns, but I hope the app continues to develop and mature without giving up its simplicity.

Bottom line

At $40, Napkin isn’t an impulse buy for most people. However, if you’re constantly making these sorts of images for family members, colleagues, presentations, or publication, you can speed up your process and likely produce nearly effortlessly better results with this gem.
