One of the world’s least-exciting sentences is, “Let’s talk about technology standards!” But I promise I’m not digging down into wiring schematics, pinout diagrams, and 1,000-page protocol descriptions. Rather, I want to help you get up to speed on how USB and Thunderbolt work separately and together so you know how you can best use them—and troubleshoot them when incompatibilities arise.
The path forward relies on the latest standards: Thunderbolt 4 and USB4. While not perfectly compatible with each other, they are nearly so. Most importantly, the two standards have effectively converged on a single cable type you can purchase and use almost universally with Thunderbolt 3 or 4, and USB 3.1, 3.2, and USB4 via USB-C.
USB was at one point the great hope of the future: Universal! Serial! Bus! All three words pointed in the right direction. Instead of many serial connectors and buses (and even some parallel ports), USB would unify many kinds of purpose into one controller with a limited set of jacks and plugs designed for different purposes. All USB devices could plug into any USB port, given the right cable.
A lovely idea, but one that was ruined by the large number of USB plug types that emerged. There are currently nine kinds of USB connectors. But that’s not the only issue: even though you may be most familiar with the rectangular USB Type-A plug and jack, a USB cable cannot have a Type-A plug on both ends, whether full-sized, Mini, or Micro.

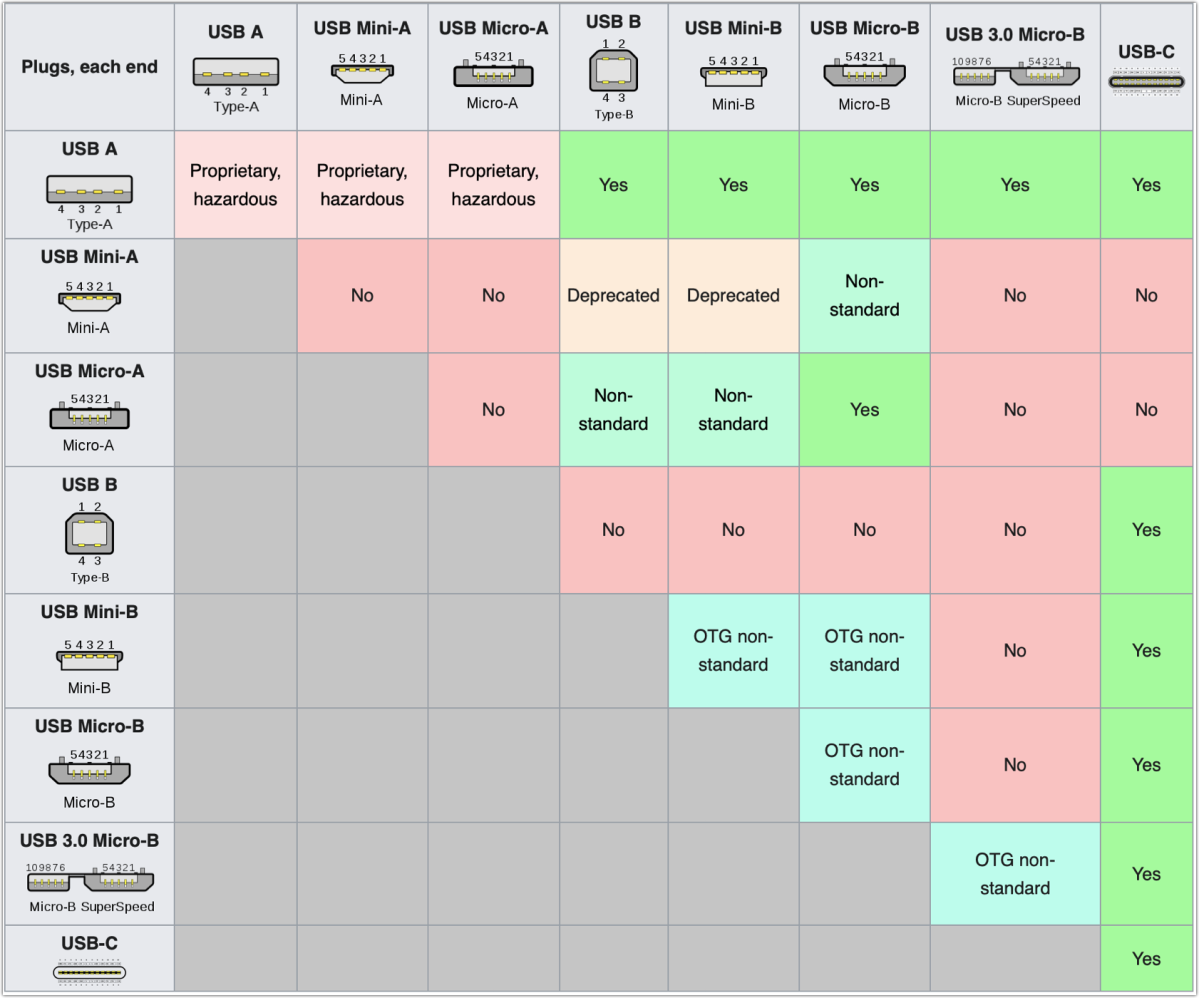

In a chart from Wikipedia’s extensive USB entry, shown below, the eight kinds of USB connectors run across the top and down the side. The following points are worth noting:
Type-A can’t connect to Type-A: it’s noted as “Proprietary, hazardous” (the pale red squares) as it’s that dangerous and bad.
The profusion of red squares reading “No” also help tell the story about the lack of like-to-like and even unlike-to-unlike options.
Across the top, you can see Type-A was once the most compatible, connecting to all the B types (four of them) and then to USB-C.
However, the final column reveals the truth and the evolution: USB-C can connect to most formats—mostly importantly, to itself. (Mini-A and Micro-A are so rare, it’s not a real missing link that USB-C can’t work with them.) I’ll return to USB-C in a moment.
As USB connector types proliferated, the underlying technical standard evolved, too. The evolution drove the newer connection formats. USB from 1.0 to 3.0, and from 1.5 Mbps/12 Mbps to 5 Gbps, generally relied on the same rectangular Type-A connector. USB 1.1 (1998) became widely used and was particularly useful for keyboards, mice, and other input devices. USB 2.0 (2000) offered 480 Mbps, providing a rate suitable for external hard drives, and contending for a few years with FireWire 400 and 800 (Apple’s choice). But USB won out.
Its standards association, the USB Implementers Forum (USB-IF) released USB 3.0 in 2008, skyrocketed the data rate to 5 Gbps. Marketed as SuperSpeed, it also bumped up power flow from 150 milliamps (mA) to 900 mA, allowing for mobile device charging and bus-powered peripherals.
It was only 2014 that the USB-C connector debuted with USB 3.1. Type-A connectors were limited to 5 Gbps, but USB 3.1 Gen 2, as it was called, could reach 10 Gbps with computers and peripherals equipped with appropriate hardware. In 2017, that was bumped upward again with USB 3.2. A 3.2 Type-A connector can offer 5 or 10 Gbps; a USB-C connector, 10 or 20 Gbps. The USB-IF rebranded its standards names, too, to SuperSpeed USB 5 Gbps, 10 Gbps, and 20 Gbps.
This is where I ask you to hold on to your socks and remove the space between USB and a digit. USB4 (see, no space) only allows for USB-C connectors and is an implementation of…Thunderbolt 3! USB4 can operate at either 20 Gbps or 40 Gbps; in the latter form, it’s marketed and labeled as SuperSpeed USB 40 Gbps.
The evolution of USB was therefore away from profusion and toward the USB-C single jack/plug type that could work everywhere—truly universal at last!

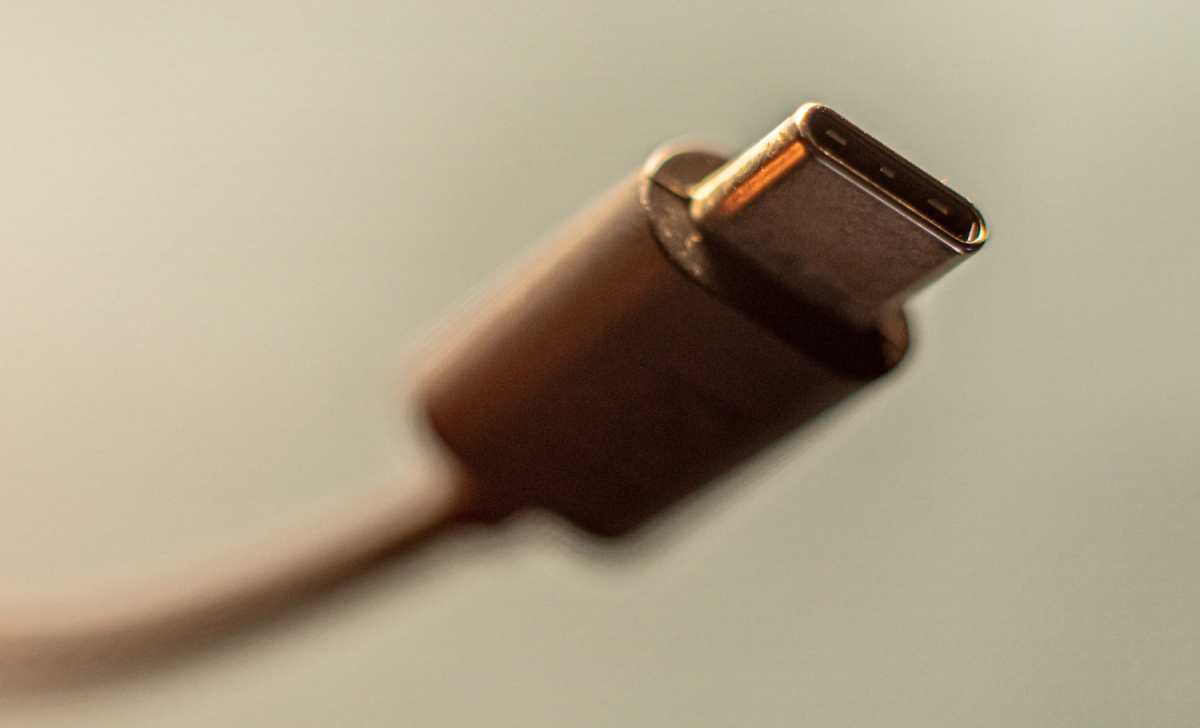

Finally, a single connection type that was used on both ends of a cable, reversible by 180° as a plug inserted into a jack across its long end, had a compact factor, and could carry up to 100 W of power (and, later, up to 240 W). Power flow could go either way: a laptop or desktop could charge a mobile device or power pack, or vice versa.
With Intel’s adoption of USB-C starting with Thunderbolt 3 and the near-complete convergence of USB on Thunderbolt standards, it’s all perfect, isn’t it?
Well, no. First, people had invested a lot into equipment that had USB Type-A connectors. Early computers with USB-C jacks tended to scrimp, and docks with many USB Type-A ports were in short supply. From 2015 to at least 2019, people complained endlessly—and largely rightly so—that they had to buy and keep handy a large array of cables, adapters, and mini-docks. By 2020, it seemed to settle down: peripherals switched to either be USB-C based or included a cable or adapter, less-expensive docks were widely available, and computer makers—particularly Apple—decided to include more and different kinds of jacks to reduce the hassle.
Second, during the awkward Thunderbolt 3, USB 3.1, USB 3.2, Thunderbolt 4, and USB4 transition, you could wind up buying a USB-C cable that wouldn’t properly connect two devices with USB-C ports, wouldn’t connect them at the highest possible data rate (dropping to 10 Gbps, say, instead of 40 Gbps), or would only pass 15 W or 60 W of power instead of 100 W. That problem still hasn’t gone away, but it has decreased and will improve even more in the near future.
Third, as USB has moved from 3.1 to 3.2 to 4, and added options for power offered by ports and carried by cables, the profusion of markings has become more than baroque.
Thunderbolt doesn’t replace USB, but the convergence of it with USB does help clear away some of the underbrush, as I explain next.
The Thunderbolt standard
Intel introduced Thunderbolt under the name Light Speed in 2010 and Apple—then a keen user of Intel CPUs—helped set the direction adopted it in all their computers. The original version of Thunderbolt offered what was then a blazing 10 Gbps of data simultaneously in both directions—so blazing that it outstripped most storage and other hardware of the time.
Recognizing the shortage of ports on computers at the time, Thunderbolt was built from the start with support for daisy chaining, similar in concept to the earlier SCSI standard, and something that made sense for stringing together a series of high-performance optical drives, hard drives, or arrays of drives in a single enclosure (RAID). Up to six Thunderbolt devices could be daisy chained.
The original Thunderbolt also allowed DisplayPort to pass over the same connection, and could provide at least 10 W of power.
Intel doubled throughput to 20 Gbps in 2013 with Thunderbolt 2 and then again to a maximum of 40 Gbps in 205 with Thunderbolt 3.
First-generation Thunderbolt and Thunderbolt 2 relied on a plug/jack style identical to Mini DisplayPort. This was conveniently what Apple had already adopted a few years before for external video connections, making the transition easier—at least within that customer segment.
With Thunderbolt 3, Intel adopted the USB-C form factor in a completely standard fashion. Thunderbolt 3 brought several features and options to the communication standard. This is what you should expect from any Thunderbolt 3 port on any computer or device:
40 Gbps (jack only): Thunderbolt 2 maxed out at 20 Gbps; all Thunderbolt 3 ports have to support 40 Gbps. However, depending on the cable, you might achieve only 20 Gbps; see Thunderbolt Capabilities in Link Devices with Cables.
4K displays: Each Thunderbolt 3 controller must support at least a single 4K display at 60 Hz using DisplayPort 1.2. However, later versions of Thunderbolt 3 controllers could optionally incorporate DisplayPort 1.4 and handle up to two 4K displays at 60 Hz, one 4K display at 120 Hz, or one 5K display at 60 Hz. (The 5K option initially required a controller unique to Apple’s computers.)
Minimum 15 W power: Where Thunderbolt and Thunderbolt 2 had to deliver up to 10 W, Thunderbolt 3 starts at 15 W, more appropriate for charging a later generation of smartphones and tablets.
Peer-to-peer networks: Thunderbolt allows computers to daisy chain together and achieve up to 10 Gbps, as if they were connected by 10 Gbps Ethernet. (See Use Peer-to-Peer 10 Gbps Thunderbolt.)
Optional USB Power Delivery: With support for USB Power Delivery, a Thunderbolt 3 port can optionally push up to 100 W of power to a compatible device, like a laptop.
Optional hubs: Thunderbolt 3 could allow for up to four-port Thunderbolt hubs. This feature wasn’t generally supported until Thunderbolt 4 became available.
Thunderbolt 4 amps things up a bit by increasing minimum requirements or making optional Thunderbolt 3 features mandatory in Thunderbolt 4.
The two biggest changes that might affect you directly are cable and compatibility improvements. First, Thunderbolt 4 cables up to 6.6 feet (2 m) don’t have the “active” circuitry requirement that was needed in Thunderbolt 3 to achieve 40 Gbps regardless of cable length. Second, Thunderbolt 4 jacks must be fully backwards compatibility at least 10 Gbps USB 3.1/3.2, but can support up to 40 Gbps USB4.
The result is the elimination of the major host/cable/peripheral compatibility that has dogged Thunderbolt. With a Thunderbolt 4 jack and Thunderbolt 4 cable:
Any cable connecting a Thunderbolt 4 jack to a USB 3/USB4 peripheral port over USB-C will always work and always offer at least a 10 Gbps data rate.
Based on market research so far, any Thunderbolt 4 cable is also fully USB4 compatible. When connecting any two Thunderbolt 4, USB 3.x, or USB4 jacks with such a cable, you will always achieve the maximum common data rate.
This change alone should bring a lot of relief from cable clutter, standards confusion, and frustration over low data rates or incompatibility. But there’s more! Here’s what else you can expect from Thunderbolt 4:
Always 40 Gbps: Thunderbolt 4 accepts no compromises. All jacks and cables must support 40 Gbps.
Two 4K displays: Thunderbolt 3 could optionally handle up to two external 4K displays at 60 Hz; that’s now the minimum requirement for Thunderbolt 4.
Required 100 W power on a host: Any computer with Thunderbolt 4 must have at least one jack that delivers up to 100 W.
Minimum USB support: As noted above, all Thunderbolt 4 jacks must support USB 3.2 Gen 2×1 and 1×2 (10 Gbps), but can optionally support up to USB4 (20 Gbps and 40 Gbps).
Wake from sleep: While not a marquee feature, Thunderbolt 4 requires that a host computer monitor the port for a “wake from sleep” signal. This allows a peripheral to wake the host. A similar feature was added to Ethernet in 1996, called Wake-from-LAN.
Thunderbolt ports on dock: Instead of being an option, operating systems and jacks must allow up to four external Thunderbolt 4 ports on a dock.
USB and Thunderbolt compatibility
The biggest area of port and cable confusion I ever encounter is the matrix of compatibility between generations of USB and Thunderbolt. It’s natural to be confused: the two have converged, but in what ways?
Here are the simplest ways to distinguish the capabilities of USB4 and Thunderbolt 4:
Thunderbolt 4 is almost entirely a superset of USB4: Thunderbolt 4 has support for USB Power Delivery specification only up to 100 W. Some Thunderbolt 4 controllers might not support 20 Gbps and 40 Gbps USB4, making it impossible for a USB4-based peripheral or host to exceed 10 Gbps between two devices.
USB4 is a superset of Thunderbolt 3, not including the mandatory elements of Thunderbolt 4: USB4 requires a minimum of only 20 Gbps, not 40 Gbps, making a USB4 controller on a host or peripheral potentially slower than a pair of Thunderbolt 4 devices. It can deliver up to 240 W of power.
These differences largely apply if you’re have a high-performance environment in which the difference among 10, 20, and 40 Gbps throughput is crucial. For most people, owning a computer with a Thunderbolt 4 port and purchasing a 10 Gbps USB 3.x or USB4 device won’t have a high impact.
But it also makes your choice of cables and peripherals moving forward far simpler than in the past.
First, when buying new peripherals check the capabilities of your computer or mobile device. If it only supports USB 3.0, 3.1, or 3.2, you can opt for what is typically a far cheaper USB 3-only peripherals, like an SSD, than a Thunderbolt 3 or 4 model. For Mac users, you can often pick between USB 3.x and Thunderbolt 3 or 4 on the basis of performance and cost because Apple offers Thunderbolt 3 and USB 3.1 all from all new Macs starting in 2016.
Second, when buying a new cable, your best choice is almost always a Thunderbolt 4/USB4 cable. While Thunderbolt 3 cables were quite expensive relative to USB-only ones, a new generation of Thunderbolt 4/USB4 cables from many manufacturers cost about $25 to $60 from about half a foot to two meters. These cables are universally compatible among USB 3.1 and later and Thunderbolt 3 and later, and work with adapters with older standards.
Third, avoid two kinds of cables: “Charging-only” USB-C cables, which offer up to 100 W of power but only 480 Mbps of data; Apple still ships one of these with some of its laptop models; and “active” Thunderbolt 3 cables if you work with a mix of USB 3.x and Thunderbolt hardware. An active Thunderbolt 3 cable throttles USB to 480 Mbps as well; a Thunderbolt 4/USB4 cable works at the full 5 Gbps to 40 Gbps rate available across USB 3.0 to USB4.
Most of the compatibility confusions, cable clutter, and port mismatches of the past have disappeared with new standards and cables. Keep yourself informed to get the best results with legacy gear, but you can look forward to a simple future.
